High quality LC1D09 Magnetic AC Contactor

Product Categories

Yueqing Kampa Electric Co., Ltd.

Contact Now

Name: High quality LC1D09 Magnetic AC Contactor
Brand: Kampa
Price: 3.00 USD

Add to Cart

1.Product Data Description of AC Contactor:

Specification
Model	Rated working current (A)		Rated heat current (A)	AC3 capacity of three-phase squirrel-cage motor AC3(KW)
	Rated working current (A)			220/230V	380/400V	415V	440V	500V	600/690V
	AC3	AC4		KW	KW	KW	KW	KW	KW
LC1-D09	9	3.5	20	2.2	4	4	4	5.5	5.5
LC1-D12	12	5	20	3	5.5	5.5	5.5	7.5	7.5
LC1-D18	18	7.7	32	4	7.5	9	9	10	10
LC1-D25	25	8.5	40	5.5	11	11	11	15	15
LC1-D32	32	12	50	7.5	15	15	15	18.5	18.5
LC1-D40	40	18.5	60	11	18.5	22	22	22	30
LC1-D50	50	24	80	15	22	25	30	30	33
LC1-D65	65	28	80	18.5	30	37	37	37	37
LC1-D80	80	37	125	22	37	45	45	55	45
LC1-D95	95	44	125	25	45	45	45	55	45
Number of the contact	3P+NO
	3P+NC
	3P+(NO+NC)
Matched auxiliry contactor	LA1-DN02(2NC),LA1-DN11(1NO+1NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC)
Matched auxiliry contactor	LA1-DN40(4NO),LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC)
Matched time delay auxiliary contact	Time delay after power on:LA2-DT0(0.1-3s),LA2-DT2(0.1-30s),LA2-DT4(10-180s)
Matched time delay auxiliary contact	Time delay after power off:LA3-DR0(0.1-3s),LA3-DR2(0.1-30s),LA3-DR4(10-180s)
External dimensions & Installation dimensions
Type	Amax		Bmax	Cmax	a		b		φ
LC1-D09/12/18	45		74	80	35±0.50		50±0.50/60±0.60		4.5
LC1-D25	56		84	93	40±0.50		50±0.50/60±0.60		4.5
LC1-D32	56		84	98	40±0.50		50±0.50/60±0.60		4.5
LC1-D40/50/65	75		127	114	40±0.50		100±0.70/110±0.70		6.5
LC1-D80/95	85		127	125	40±0.50		100±0.70/110±0.70		6.5

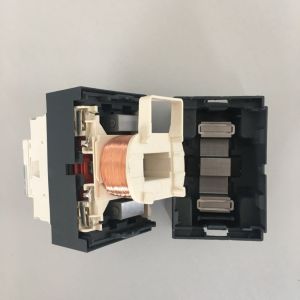

2.Product pictures of AC Contactor:

High quality LC1D09 Magnetic AC Contactor
