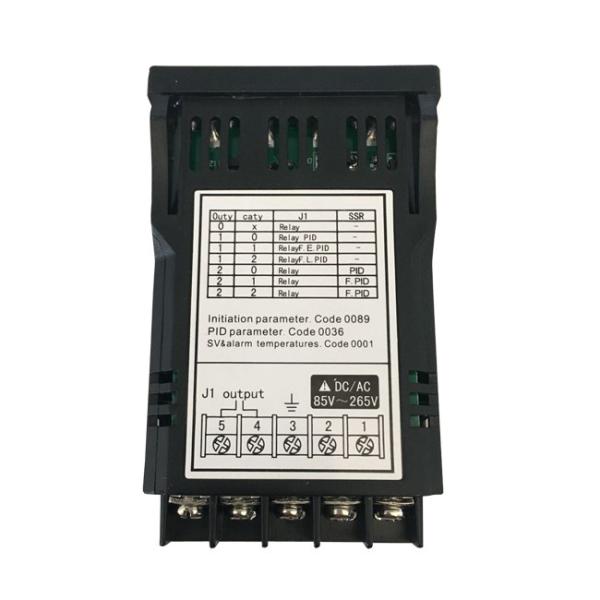

mini size XMT7100 PID Temperature Controller Programmable Build in Relay with LED

Ask Lasest Price
Brand Name :	OEM
Model Number :	XMT7100
Supply Ability :	20000 Piece/Pieces per Month
Price :	$12.00 - $14.00/Pieces

Add to Cart

Product Details
Company Profile

mini size XMT7100 PID Temperature Controller Programmable Build in Relay with LED

XMT7100 AC/DC 85V~265V Size 48*24mm PID Digital Temperature Controller RTD Thermocouple

1.Brief introduction
XMT -7100 Series Intelligent PID Temperature Controller are the multi-functional regulators adopting the micro processing units. The instrument has automating function to self adapt to different systems. The instrument can also be degrees Celsius, degrees Fahrenheit temperature. Five control optional: 0.One alarm relay 1.Relay contact PID output 2.One alarm relay output;SSR all the way non-contact level PID output 3.One alarm relay output;SSR-level all the way back to poor control output 4.Backlash relay control output
2.Main technologies indicates
Input	RTD input(Pt100,Cu50) ; Thermocouple input(T, R, J, B, S, K, E, WRe3-WRe25)
power supply	AC/DC85~260V,(50/60Hz)
Contact capacity	AC 250V/3A
Contact life	1×105
SSR-level	8V(Open-circuit voltage); 30mA(short-circuit current)
Temperature range	-199.9 ~ +2300°C
Measure accuracy	±0.2%FS
Environment	0~+50°C;≤85%RH
Display	LED(red, blue, white, green, orange)
Outline Dimension	48×24×75mm
Panel Dimension	45×22mm
