    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

    Ask Lasest Price
    Model Number : LJ8A3-1.5-Z/AY
    Brand Name : Kampa
    Supply Ability : 100000 Piece/Pieces per Month
    Price : $1.50 - $2.20/Pieces
    • Product Details
    • Company Profile

    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

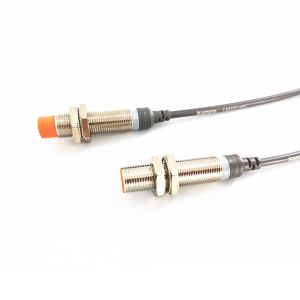

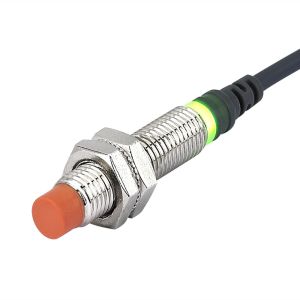

    Product Show

    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor



    Product Description
    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch
    DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
    1.Model Number Structure
    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
    2.Technical Specification
    Model:M8
    Output Form:DCNPNNOLJ8A3-1.5-Z/BX
    NCLJ8A3-1.5-Z/AX
    NO+NCLJ8A3-1.5-Z/CX
    PNPNOLJ8A3-1.5-Z/BY
    NCLJ8A3-1.5-Z/AY
    NO+ACLJ8A3-1.5-Z/CY
    2-wireNOLJ8A3-1.5-Z/EZ
    NCLJ8A3-1.5-Z/DZ
    AC2-wireNOLJ8A3-1.5-J/EZ
    NCLJ8A3-1.5-J/DZ

    Sensing Surface:

    Standard Detecting Object:

    Detection Distance:

    Frequency:

    Non-flush Type

    12*12*1mm metal

    2mm±10%

    1000Hz

    		Flush Type

    8*8*1mm metal

    1.5mm±10%

    1500Hz

    Frequency:

    		AC: 20Hz
    Detection Object:Magnetic metal
    Voltage Supply:10~30VDC, 90~250VAC
    Static Operating Current:<10mA
    Full-load Current:DC: ≤200mA, AC: ≤300mA
    Output Indication:green LED,360°visible
    Power Protection:

    DC:reverse protection,short-circuit protection

    AC:surge protection

    Withstand Voltage:

    1500V/AC 50/60Hz 1min

    Ambient Temperature:

    Storage Temperature:

    Ambient Humidity:

    -20 ~ +70℃

    -30 ~ +80℃

    35~95%

    Insulation Resistance:

    ≥50MΩ

    IP Grade:

    IP67

    Material:

    brass nickel-plated case,

    PBT detection surface,

    PVC cable

    3.Features
    —— Good quality, good sensing performance, anti-interference and stable output.
    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
    —— LED (green light) indicator to show the output, 360° visible, clear and intuitive.
    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
    —— Two types available, different sensing distance: non-flush type(2mm), flush type(1.5mm).
    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
    4.Dimension
    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
    Packaging & Shipping
    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor
    Company Information

    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor


    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

    LJ8A3-1.5-Z/AY M8 Inductive Proximity Switch DC PNP NC 1.5mm Sensing Distance Flush Type Proximity Sensor

    A.Punctual delivery time:
    We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
    Production report before your order packed.
    Shipping notice and photos sent to you as soon as your order is shipped.

    B.After sales service:
    We Pay high Attention To Your Feed back after receive the goods.
    We Provide 12 months warranty after goods arrive.
    We Promise All Parts Available in lifetime use.
    We Positively Revert Your Complain Within 48hours.
    C.Professional Sales:
    We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
    We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
    We Are A Sales Team, With AllTechnical Support From Engineer Team.
