CM12 6-36VDC/90-250VAC NPN/PNP/2 Wires small capacitive proximity sensor

Product Description

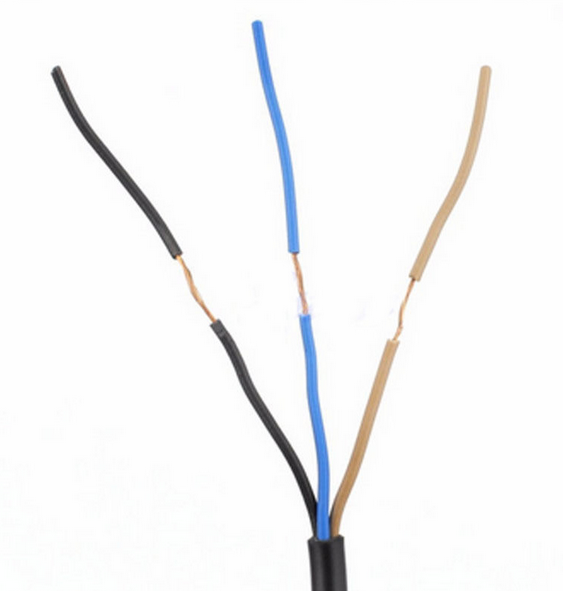

1. Pictures of sensor switch

CM12 6-36VDC/90-250VAC NPN/PNP/2 Wires small capacitive proximity sensor

2.Description of sensor switch

Outward appearance code				CM12
Appearance
Dimension
Flush	Detection distance			0-8mm
	DC6-36V	NPN	NO	3008NA
			NC	3008NB
			NO+NC	3008NC
		PNP	NO	3008PA
			NC	3008PB
			NO+NC	3008PC
	AC90-250V	SRC Control label silicon	NO	2008A
			NC	2008B
Non-flush	Detection distance			0-12mm
	DC6-36V	NPN	NO	3012NA
			NC	3012NB
			NO+NC	3012NC
		PNP	NO	3012PA
			NC	3012PB
			NO+NC	3012PC
	AC90-250V	SRC Control label silicon	NO	2012A
			NC	2012B
Control output		DC		200mA
		SCR/Relay		300mA
Detect object				conductor and dielectric body
Consumption current				DC<15mA AC<10mA
Output current				DC<3V AC<10mA
Output voltage drop				DC(NPN,PNP)<3V,AX<7V
Response frequency				DC:50HZ AC:20HZ
Shell material				Metal
Working environment temperature				below 25C to 70C
Insulation resistance				50MΩ
Shell meterial				Metal
Protection grade				IEC standard IP54
Altemative model at home and abroad				LJC24A3-⟨⟨
